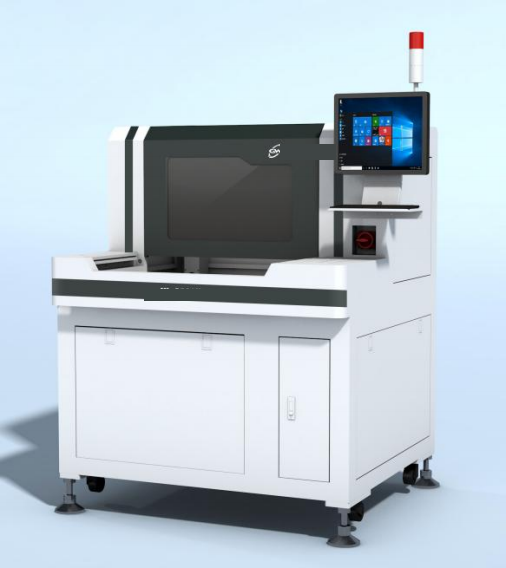

KL-3500FH Hybrid PCB Depaneling Machine
The KL-3500FH combines a high-speed rotating saw blade and a milling cutter to separate multi-panel PCBs according to programmed cutting paths. It is designed for V-CUT, stamp-hole and bridge-connected panels.
Saw Blade + Milling Cutter | Dual-Table Composite CuttingHybrid Cutting
Saw + RouterWork Area
300 x 330mmAccuracy
+/-0.05mmPanel Types
V-CUT / TabsThe KL-3500FH supports straight-line, L-shaped, U-shaped, circular and arc cutting. It helps reduce defects compared with manual breaking, V-CUT pressing and punching methods.
Key Features
Hybrid saw blade and milling cutter depaneling - one machine handles mixed panel connection methods.
Multiple panel types - supports V-CUT, stamp-hole and bridge-connected PCB panels.
Flexible cutting paths - straight-line, L-shaped, U-shaped, circular and arc cutting.
Dual-table operation - 300 x 330mm composite cutting area for medium-size PCB panels.
Efficient dust extraction - integrated table dust port with selectable upper and lower extraction modes.
Servo-controlled main motion - reduces air-related faults and improves long-term stability.

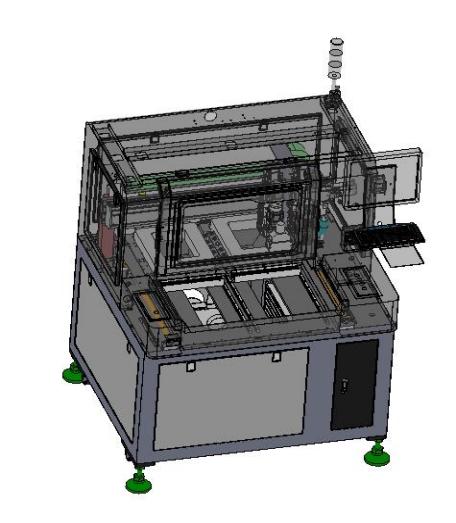

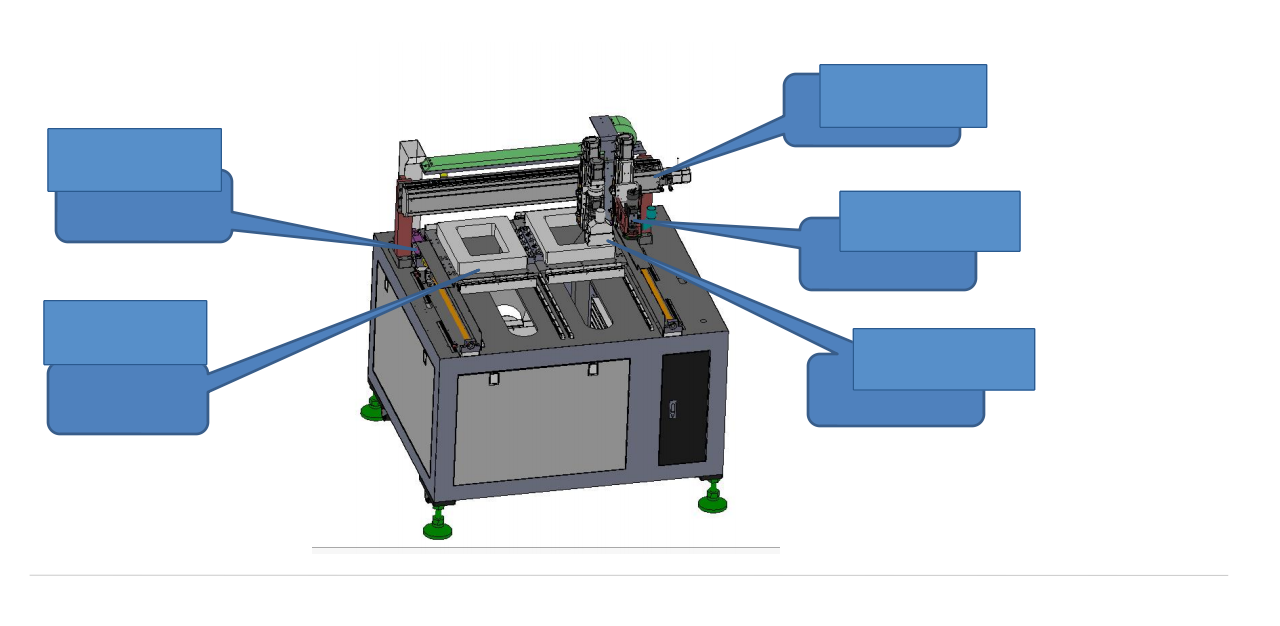

Machine Structure
Technical Specifications
| Item | Specification |
|---|---|
| Machine dimensions | 1240 x 1150 x 1564 mm, excluding monitor, alarm light and foot cups |
| Saw blade depaneling range | 50 x 50 to 300 x 330 mm |
| Milling cutter depaneling range | 50 x 50 to 300 x 330 mm |
| Board thickness | 0.5 to 3 mm |
| Air pressure | 4 to 6 kg/cm2 |
| Positioning accuracy | +/-0.02 mm |
| Cutting accuracy | +/-0.05 mm |
| Milling cutting speed | 0 to 100 mm/s |
| Saw blade thickness | 0.3 mm |
| Saw blade cutting speed | 0 to 80 mm/s |
| Voltage | AC 220V / 380V, 50/60 Hz |
| Total machine power | Approx. 6 kW |
Main Components
| Component | Brand / Description |
|---|---|
| Servo motor and driver | Hechuan Servo |
| Cylinder and solenoid valve | SMC / Airtac |
| Industrial computer | Industrial control host |
| Photoelectric, limit and proximity switches | OMRON / SICK |
| Ball screw | TBI / HIWIN |
| Linear guide | HIWIN / PMI |
| Electrical components | CHINT |
| Spindle | Kavo 4025 |
| Dust collector | High-power industrial dust collector |
Frequently Asked Questions
It supports V-CUT, stamp-hole and bridge-connected PCB panels.
The KL-3500FH can perform straight-line, L-shaped, U-shaped, circular and arc cutting according to programmed paths.
It is suitable for digital products, communications, lighting and other electronics manufacturing fields.
