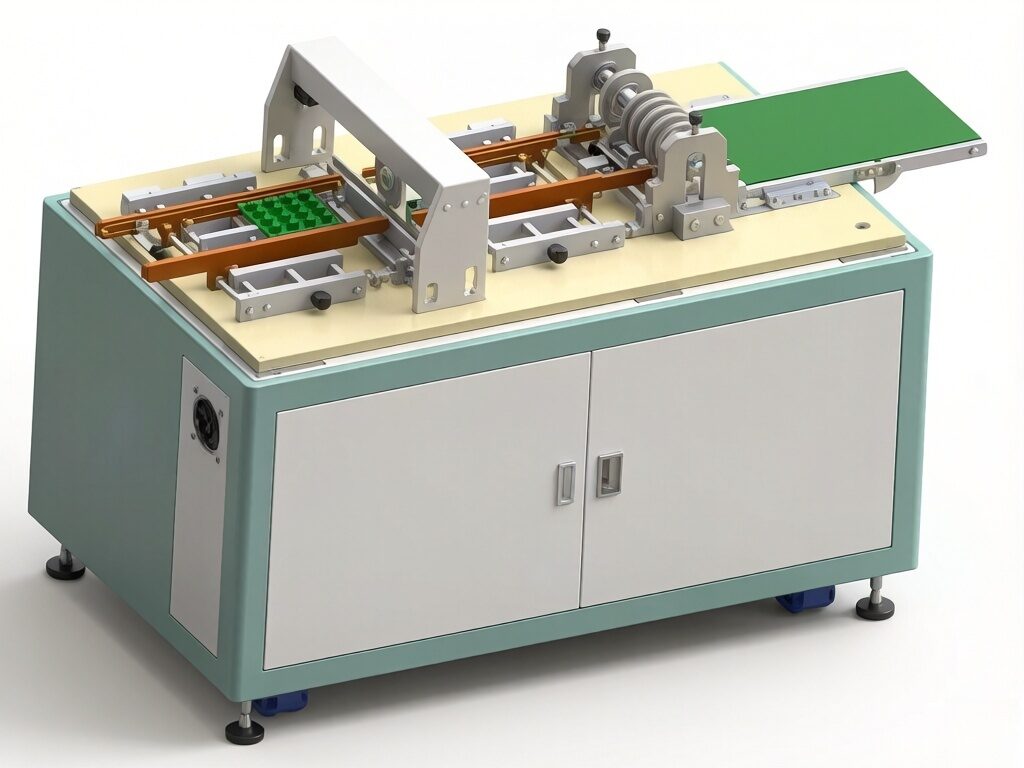

Professional bidirectional V-Cut knife depaneling machine that separates PCB from both X and Y directions in one setup. Upper circular blade + lower straight blade design with adjustable cutting speed (300-500mm/s). Low cutting stress prevents solder joint cracking. Ideal for large PCB panels, LED light panels, and aluminum base boards.
| Parameter | KL-8308 |
|---|---|
| Cutting Direction | Bidirectional (X & Y axis) |
| Max Cutting Length | 400mm |
| Cutting Thickness | 0.3-3.5mm |
| Feeding Speed | 300-500mm/s adjustable |
| Power Supply | 220VAC, 250W |
| Blade Material | SKD-11 HSS |
| Blade Type | Upper Circular + Lower Straight |
Bidirectional Cutting - Separates PCB from both X and Y directions in one setup
Large Panel Support - Ideal for large PCB panels requiring cuts in both directions
Upper Circular + Lower Straight Blade - Proven design for clean, low-stress cutting
Adjustable Cutting Speed - 300-500mm/s for different board thicknesses
Low Cutting Stress - Prevents solder cracking and component damage
Safety Photoelectric Sensors - Comprehensive operator protection
Optional Conveyor Belt - For production line integration
SKD-11 HSS Blade - Long service life and re-sharpenable
Dust Collection Available - Fully enclosed model with dust collection option
Versatile Applications - LED panels, fiberglass, aluminum base boards
Multi-Directional Cutting - X and Y axis cutting in one setup for complex panels
Component Protection - Low cutting stress prevents solder joint cracking
Clean Operation - Optional dust collection for clean production environment
Fast Service - 24-hour on-site response, 1-year warranty
Standard V-Cut depaneling machines cut in only one direction (typically X-axis). The KL-8308 bidirectional system can cut from both X and Y directions in a single setup. This is ideal for large PCB panels that require cuts in multiple directions, providing more flexibility and efficiency.
The KL-8308 is designed for large PCB panels, LED light panels, fiberglass boards (FR-4), and aluminum base boards. Its bidirectional cutting capability makes it ideal for complex panel layouts that require multi-directional separation.
The KL-8308 features adjustable feeding speed of 300-500mm/s. The upper circular blade + lower straight blade design provides low cutting stress, effectively preventing solder joint cracking and protecting sensitive components.
Yes, a fully enclosed model with dust collection is available for the KL-8308. This ensures clean operation and protects the working environment from PCB debris during the cutting process.
The KL-8308 uses SKD-11 HSS blade material, known for its durability and long service life. The blade can be re-sharpened for reuse, reducing long-term operating costs. An optional conveyor belt is available for production line integration.
Contact our team for KL-8308 pricing and configuration options.
