What is a hybrid PCB depaneling machine?

A hybrid PCB depaneling machine integrates two cutting processes in one machine. The KL-3500WFH combines a high-speed saw blade for V-CUT grooves and straight lines with a milling cutter for contour routing, handling V-CUT, stamp-hole, and bridge-connected panels without transferring boards between machines.

What is the cutting area of the KL-3500WFH?

The KL-3500WFH offers a composite cutting area of 450×500mm: saw blade range 50×50 to 400×450mm, milling cutter range 50×50 to 400×500mm, covering over 98% of medium-size boards.

What cutting shapes does the KL-3500WFH support?

The KL-3500WFH supports straight-line, L-shaped, U-shaped, circular, and arc cutting paths, making it suitable for complex panel layouts.

What is the positioning accuracy of the KL-3500WFH?

The KL-3500WFH achieves ±0.02mm positioning accuracy and ±0.05mm cutting accuracy, with fully servo-driven main motion axes.

How does the dust extraction system work on the KL-3500WFH?

The KL-3500WFH integrates a 4kW industrial dust collector with the table design, supporting continuous 24-hour extraction with selectable upper/lower extraction modes.

KL-3500WFH Hybrid PCB Depaneling Machine with Saw Blade and Milling Cutter

Hybrid Depaneling Series

KL-3500WFH Hybrid PCB Depaneling Machine | Saw Blade + Milling Cutter

Name: KL-3500WFH Hybrid PCB Depaneling Machine
Brand: Keli Smart
SKU: KL-3500WFH
Availability: InStock

The KL-3500WFH is a hybrid PCB depaneling machine that integrates a high-speed saw blade and a milling cutter in one machine. It handles V-CUT, stamp-hole, and bridge-connected panels with straight, L-shaped, U-shaped, circular, and arc cutting paths — no board transfer between processes.

Model: KL-3500WFH (Larger Size) | Professional Factory Manufacturing


                Hybrid Dual-Process
                Saw Blade + Milling Cutter


                Cutting Area
                450×500mm Composite


                Positioning Accuracy
                ±0.02mm


                Dual-Table
                Alternate Operation

The composite cutting area of L450 × W500mm covers over 98% of medium-size boards. While one table cuts, the other loads and unloads — maximizing throughput. A 4kW industrial dust collector is integrated with the table, supporting continuous 24-hour extraction with selectable upper/lower modes.

Why Choose Keli Hybrid Depaneling?

Earlier: One of China's earliest curve router manufacturers with 4 generations of upgrades since 1995

Professional: CE certified with multiple patents and proprietary technology

Stable: Imported precision components (HIWIN, OMRON) ensure long-term reliability

Fast Service: 24-hour on-site response, 1-year free warranty, lifetime support

Request Quote View Other Products

Technical Specifications

Parameter	KL-3500WFH Specification
Machine Dimensions	1560 × 1560 × 1550 mm
Saw Blade Cutting Range	50 × 50 — 400 × 450 mm
Milling Cutter Cutting Range	50 × 50 — 400 × 500 mm
Board Thickness	0.5 – 3 mm
Positioning Accuracy	±0.02 mm
Cutting Accuracy	±0.05 mm
Saw Blade Thickness	0.3 mm
Saw Blade Speed	0 – 80 mm/s
Milling Speed	0 – 100 mm/s
Air Pressure	4 – 6 kg/cm²
Power Supply	AC 220V / 380V, 50/60Hz
Dust Collector Power	Approx. 4 kW
Spindle	Kavo 4025
Work Station Type	Dual-Table Alternate Operation

Key Features

Hybrid Dual-Process Cutting - Integrated saw blade + milling cutter unit for V-CUT and contour cutting in one machine

Large Cutting Area - Saw blade 400×450mm, milling cutter 400×500mm, covering 98%+ of medium-size boards

Dual-Table Operation - While one table cuts, the other loads/unloads, maximizing throughput and efficiency

Flexible Cutting Shapes - Straight-line, L-shaped, U-shaped, circular, and arc cutting paths all supported

High-Power Dust Extraction - 4kW industrial dust collector integrated with table suction, upper/lower extraction modes selectable

Servo-Controlled Motion - Main axes fully servo-driven without pneumatic reliance; air only for the ionizing air blower

Machine Structure

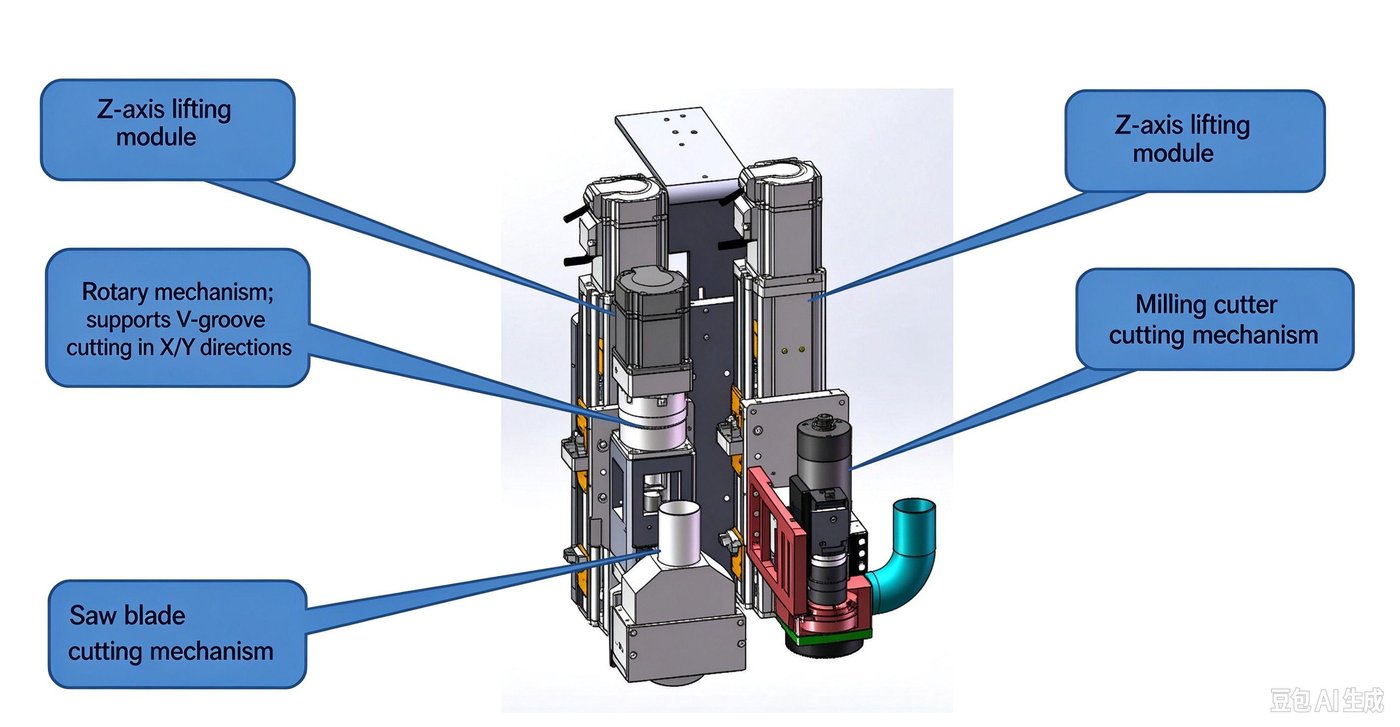

KL-3500WFH Dual Cutting Heads - Saw Blade and Milling Cutter Mechanism

Dual Cutting Heads — Saw Blade + Milling Cutter with Z-axis Lifting Modules

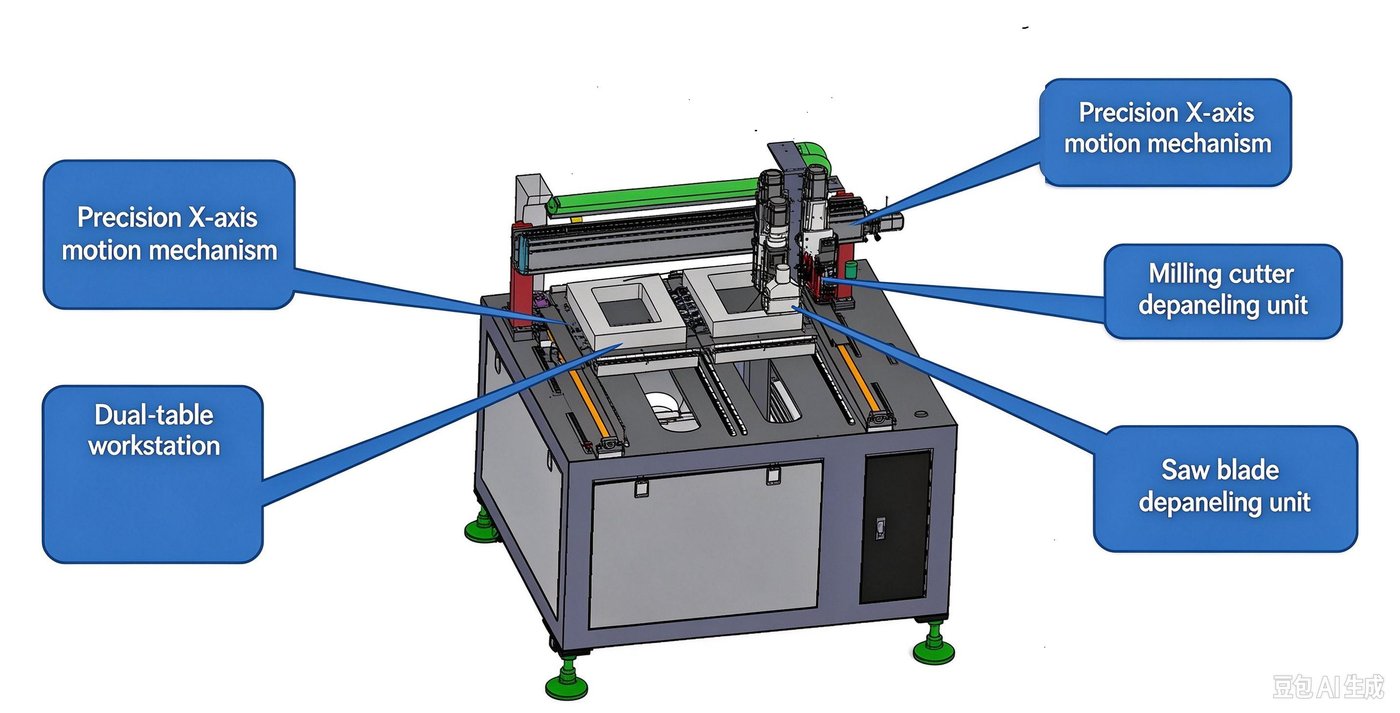

KL-3500WFH Dual-Table Workstation with X/Y Axes

Dual-Table Workstation with Precision X/Y Axis Motion

Equipment Advantages

Large Depaneling Size - Composite cutting area L450 × W500mm with dual-table operation, covering 98%+ of medium-size boards

Compact Footprint - Space-saving design; can be placed directly on the production line and quickly moved between lines

Excellent Dust Extraction - Integrated with table design; supports continuous 24-hour extraction with selectable upper/lower modes

Cost Saving - Eliminates transfer to a separate depaneling room, reducing labor and handling resources

Servo-Controlled Motion - Fully servo-driven main motion parts with no pneumatic drive needed, reducing air-related faults

Optional Configurations

AI Vision Positioning AI Auto-Programming (MARK Point Recognition) One-Click Cutting Path Generation Upper / Lower Dust Extraction Modes Custom Configuration

Standard Component Brands

Component	Brand
Servo Motor & Driver	Hechuan Servo
Cylinder & Solenoid Valve	SMC / Airtac
Industrial Computer	Industrial Control Host
Photoelectric / Limit / Proximity Switch	OMRON / SICK
Ball Screw	TBI / HIWIN
Linear Guide	HIWIN / PMI
Contactors, Air Switches & Electricals	CHINT
Spindle	Kavo 4025
Dust Collector	High-Power Industrial Dust Collector (4kW)

Request a Quote for KL-3500WFH

Contact our team for model selection assistance and customized configurations tailored to your production requirements.

Get Your KL-3500WFH Quote Now

KL-3500WFH Hybrid PCB Depaneling Machine | Saw Blade + Milling Cutter

Hybrid Dual-Process

Cutting Area

Positioning Accuracy

Dual-Table
